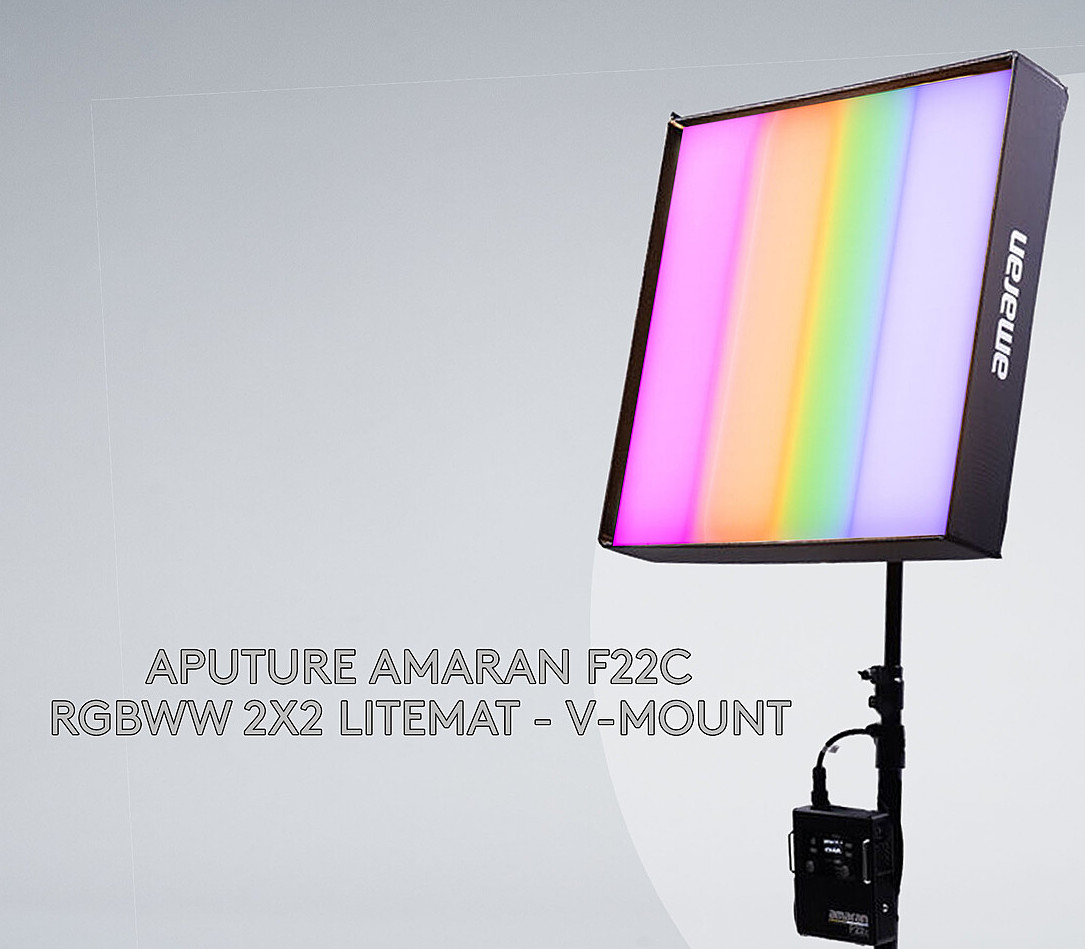

Aputure Amaran F22c 2 x 2′ RGB LED Flexible Light Mat (V-Mount)
Key Features
- For Studio & Film/TV Production
- Output: 6420 Lux at 3.3′ (5600K)
- 2500-7500K CCT; HSI Color Control
- 2 x 2′ Mat; AC/DC Operation
- CRI 95 | TLCI 98 | CQS 96
- On-Board, DMX, and Bluetooth Control
- Passive Cooling for Silent Operation
- 0-100% Dimming, 15 Lighting Effects
- Multi-Voltage AC, V-Mount Battery
- Includes Softbox Frame, Diffusers & Grid

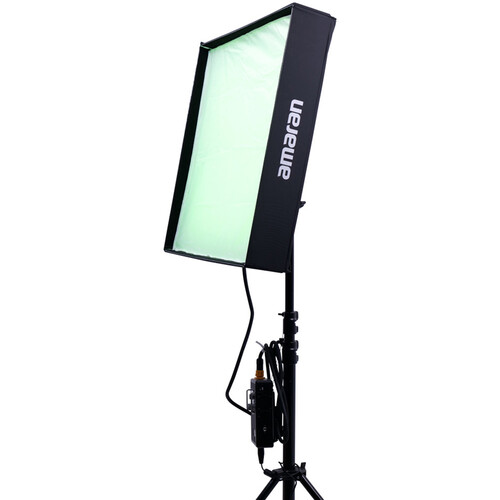

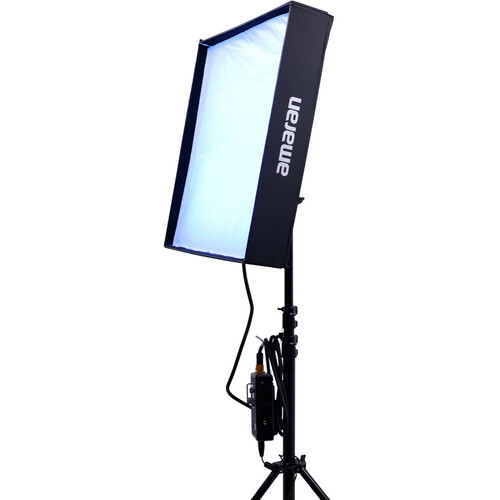

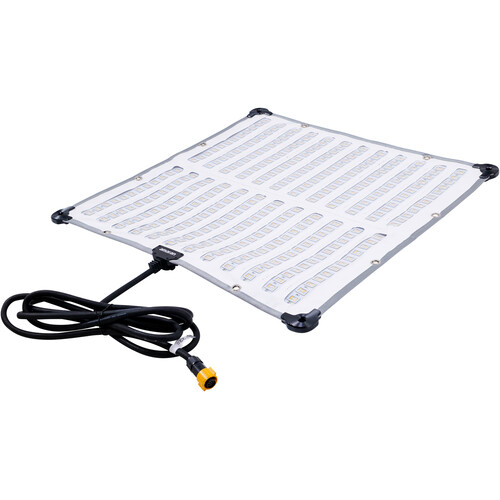

The F22c RGBWW LED Mat from amaran is a powerful, versatile, and flexible LED mat that measures 2 x 2′. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers.Providing 200W of power, it features RGBWW LEDs for complete color control, as well as tunable CCT from 2500 to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 color gel presets, and 15 unique customizable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion, and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.
Light Fixture
Item Type |
1x LED Flexible Light
|
Included Light Modifier |
1x Softbox with Removable Grid
|
Included Storage Case |
1x Case
|
Photometrics |
180° at 3200K:
534 fc / 5750 Lux at 3.3' / 1 m 65 fc / 703 Lux at 9.8' / 3 m 180° at 5600K: 596 fc / 6420 Lux at 3.3' / 1 m 73 fc / 790 Lux at 9.8' / 3 m 180° at 7500K: 657 fc / 7080 Lux at 3.3' / 1 m 80 fc / 870 Lux at 9.8' / 3 m |
Color Temperature |
2500 to 7500K
|
Color Modes |
RGB
|
Color Accuracy Standard |
CRI 95
TLCI 98 CQS 96 SSI 83 at 5600K |
Dimming |
Controller Included (Continuous)
• 0 to 100% |
Cooling System |
Passive
|
Expected Lamp Life |
50,000 Hours (L70)
|
Beam Angle |
180° Unmodified
45° with Included Grid |
Built-In Flash |
No
|
Front Accessory Mount |
Proprietary
|
Connectivity
Wireless Remote Control Type |
Bluetooth
|
Mobile App Compatible |
Yes: Android & iOS
App Name: Sidus Link |
Wireless Range |
262.5' / 80 m (Bluetooth)
|
Power & I/O
Power Source |
AC to DC Adapter (Included)
Battery (Not Included) |
Inputs/Outputs |
1x USB-C DMX Input
*Adapter Required (Not Included) 1x XLR 3-Pin Power Input 1x Proprietary Power Output |
Battery Plate Type |
1x V-Mount (Built-In)
|
Battery |
1x Rechargeable, 14.4 to 28.8 VDC (Not Included)
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
DC Input Power |
48 VDC at 2.5 A
|
Included Adapter / Cable |
1x USA Type-A/B to XLR 3-Pin AC to DC Adapter
• 48 VDC |
Inline Switch |
No
|
Power Pass-Thru |
No
|
Power Consumption |
240 W
|
Mounting
Fixture Mounting |
1x 5/8" Receiver
|
Included Adapter |
1x Non-Swivel Mount: 5/8" Receiver to 5/8" Receiver
2x Non-Swivel Mount: 5/8" Stud to 5/8" Stud |
Environmental
Environmental Protection |
No
|
Operating Temperature |
14 to 104°F / -10 to 40°C (Recommended)
|
General
Display |
OLED
|
Certifications |
CE, FCC, RoHS, cTUVus
|
Materials |
Plastic (Housing)
|
Dimensions |
23.6 x 23.6 x 0.2" / 60 x 60 x 0.5 cm (Fixture)
|
Weight |
1.94 lb / 0.88 kg (Fixture)
2.4 lb / 1.1 kg (Power Supply/Controller) |
Packaging Info
Package Weight |
18.89 lb
|
Box Dimensions (LxWxH) |
26.6 x 15.1 x 5.3"
|
