Desview SP17-HDR 17.3″ 4K UHD Multiview Portable Broadcast Monitor
Key Features
- 17.3″ 3840 x 2160 HDR Video Monitor
- Built into Lid of Hard-Shell Case
- HDMI & 3G-SDI Inputs/Outputs
- 400 cd/m² Brightness, 3D LUT Support
- 1000:1 Contrast Ratio/178° Viewing Angle
- Gamma Selection, Multiview Functions
- Pixel View, Aspect Ratios, Markers
- Color Temperature, Over Scan, Gamma
- V-Mount Battery & 4-Pin XLR Power Input
- Includes XLR Power Adapter

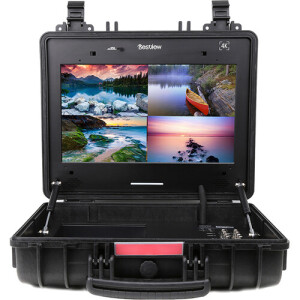

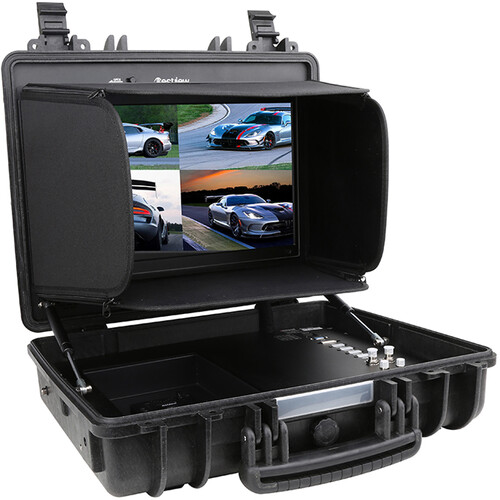

Bring multiview 4K monitoring wherever you go using the SP17-HDR 17.3″ 4K UHD Multiview Portable Broadcast Monitor from Desview. Ideal for ENG, live broadcast, and mobile production, it has both 3G-SDI and HDMI inputs and outputs, supports up to DCI 4K24 and UHD 4K60 video, and offers quad PiP/PbP format displays. The 3840 x 2160 display is built into the lid of a hard-shell case and can be powered via the V-mount battery plate or the included XLR AC adapter. A contrast ratio of 1000:1, 400 cd/m² brightness, and Rec.709/DPI-P3 color produce crisp images. This monitor also has a 3.5mm headphone jack, two built-in speakers, and an RJ45 tally port.
Display
| Panel Type |
LCD
|
| Display Size |
17.3" / 43.9 cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
Yes
|
| Pixels Per Inch (ppi) |
255 ppi
|
| Color Gamut |
100% Rec. 709
100% DCI-P3 |
| LUT Support |
Yes
|
| Image Controls |
Focus Peaking, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Underscan
|
Inputs / Outputs
| Video I/O |
2x BNC (3G-SDI) Input
2x HDMI 2.0 Input 2x HDMI 1.4 Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Monitor Output |
| Embedded Audio |
HDMI/SDI: 2-Channel
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 5-Pin Input
|
| Other I/O |
1x USB-A
1x RJ45 (Tally) |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 60/59.94 |
| Gamma Curve |
DCI-P3, Rec709
|
Power
| Input Power |
100 to 240 VAC, 50 / 60 Hz
12 to 24 VDC |
| Battery Type |
1x V-Mount (Interchangeable Mount)
|
| Power Consumption |
26 W (Typical)
|
Packaging Info
| Package Weight |
30.6 lb
|
| Box Dimensions (LxWxH) |
23.2 x 19.8 x 9.3"
|
- Product Code: SP17-HDR
- Availability:
